Flexible Jaw Couplings

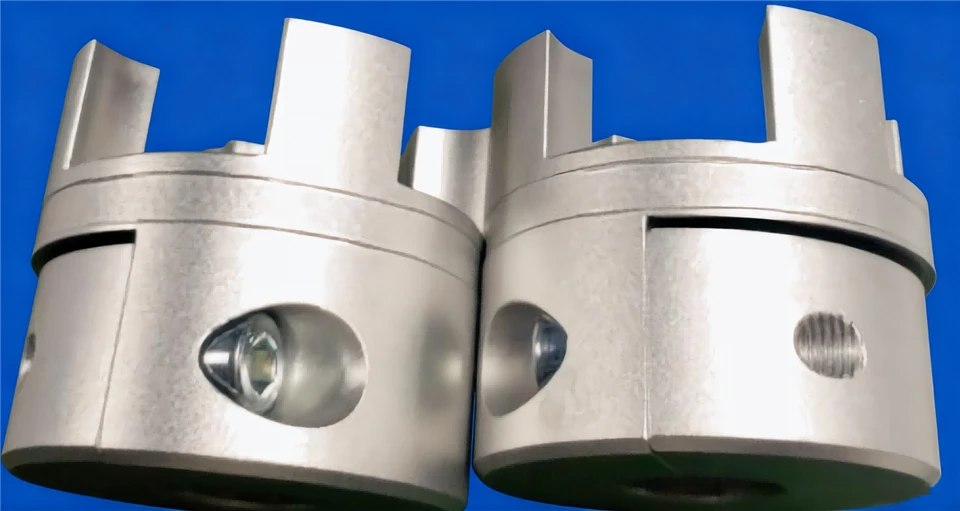

They consist of two jaw hubs (the aluminum parts shown in your picture) and a flexible spider insert fitted between the interlocking jaws. Hubs can be manufactured from aluminum alloy, steel or stainless steel, with clamping or set-screw locking structures for shaft mounting. The spider insert is normally made of PU or rubber
Working Principle
Torque is transmitted via compression of the elastomeric spider between the two hubs. The flexible insert absorbs vibration and shock loads, while accommodating minor axial, radial and angular misalignment between two shafts.
Key Advantages
Compact size, simple structure and easy assembly / disassembly.
Vibration damping and shock absorption to protect motors, bearings and other equipment.
Fail-safe feature: even if the spider insert breaks, the metal jaws can still engage for temporary operation.
No lubrication required, low maintenance cost.
Different hardness inserts are available for precise servo motion or general industrial drive.
Typical Applications
They are widely used for servo motors, stepper motors, pumps, reducers, machine tools, automation machinery and conveying equipment.
Your sample is the clamping-type zero-backlash jaw coupling, mainly applied to high-precision servo transmission systems.
